Furnace Replacements
Call on RBA Mechanical for expert and affordable furnace replacements! We are your Edmonton Payne furnace installer for residential homes and commercial businesses.
Choose your Furnace Replacements

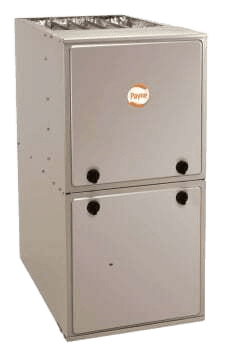

Payne Single Stage Furnace
Single Stage Heating
Cozy up to savings with the high efficiency, single stage gas furnace.
Designed to squeeze extra performance from the energy it uses, this affordable and reliable heating machine offers reliabe temperature control and up to 96.0% AFUE. That’s a significant increase from most older models.
* Single-stage operation and 5 speed blower motor for even levels of temperature control and comfort
* Dual fuel capable with a compatible heat pump and thermostat for energy-saving heating performance
* Air purifier and humidifier compatible
* High temperature limit control helps prevent overheating
* 10-Year Parts Limited Warranty upon timely registration*
* 20-Year Heat Exchanger Limited Warranty*
Payne 2-Stage Furnace Replacements
2-Stage Variable Speed Heating
Enjoy energy savings an superior comfort with this deluxe, high efficient gas furnace.
Payne® – 96% AFUE 60000 Btuh Two-Stage 4-Way Multipoise Variable-Speed ECM Condensing Gas Furnace
The PG96VTAA Multipoise Condensing Gas Furnace features a two-stage gas valve and a variable speed, constant torque (VCT) ECM blower motor. With an Annual Fuel Utilization Efficiency (AFUE) of up to 96.0% this furnace provides added savings over standard gas furnaces. It features 4-way multipoise installation flexibility, and is available in ten model sizes. Can be installed in air quality management districts with a 40 ng/J NOx emissions requirement. All sizes are design certified in Canada. This furnace is not designed for use in recreation vehicles, manufactured (mobile) homes or outdoors.
Available in 40,000, 60,000, 80,000, 100,000, and 120,000 btu sizes
PERFORMANCE
- Variable-speed, constant-torque ECM blower motor, two-speed inducer motor, and two-stage gas valve.
- Fully-insulated casing including blower section.
- Aluminized-steel primary heat exchanger.
- Stainless-steel condensing secondary heat exchanger.
- Silicon Nitride Hot Surface Igniter.
- Adjustable blower speed for heating, cooling, continuous fan, and dehumidification.
INSTALLATION FLEXIBILITY
- 4-way multipoise design for upflow, downflow or horizontal installations, with unique vent elbow and optional through-the-cabinet downflow venting capability.
- Factory-configured ready for upflow applications.
- Installation flexibility: sidewall or vertical vent.
- Ideal height 35″ (889 mm) cabinet: short enough for taller coils, but still allows enough room for service.
- Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air.
CERTIFICATIONS
- All sizes meet ENERGY STAR® Version 4.1 criteria for gas furnaces: 95%+ AFUE.
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193.
- All sizes meet 40 ng/J NOx emissions. Can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
Furnace Accessories & Packages
Although a furnace is used to heat your home, there is more to your indoor air quality then just a furnace. When you contact RBA Mechanical for your new furnace quote, we discuss the options that are available to you.
Filter racks and electronic air cleaners are used to trap particles from the air as they flow through your furnace system. A filter is a code requirment with any furnace installation or replacement.
Thermostats (controls) are used to control the heating that flows through your home. Most of these don’t moniter your humidity. But there are thermostats available that can monitor your indoor temp, outdoor temp and your home humidity level.
Looking for a full installation package?
Full installation packages by RBA Mechanical saves you money.
Looking to add an air conditioner to your home, add it to your furnace installation, and more.
